P/N: ETI0014-D4 Rugged Rackmount Disk Expansion Unit, NSN: 7025-01-430-3634

Model: ETI0014-D4 Series
MissionCritical™ Rugged
Rackmount Drive Expansion Unit

US Navy, SPAWAR Standard Product
12 Slim or 8 Half or 4 Full Height Bays
Redundant Power Supplies

NSN: 7025-01-430-3634

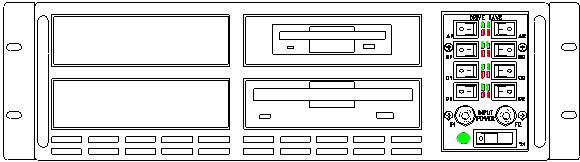

ETI0014-D4 Front Panel Layout
ETI0014-D4 Front Panel Layout (Shown with Front Panel 1 - (4) HalfHeight Removable Media Drive Bays)
NSN: 7025-01-430-3634

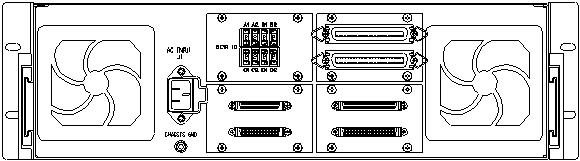

ETI0014-D4 Rear Panel Layout
ETI0014-D4 Rear Panel Layout (Shown with Various SCSI Connector andID Panel Options)

The MissionCritical™ ETI0014-D4 (D4 for short) is ideally suited for criticalapplications requiring rugged rack or table mount and/or portable construction, highreliability, compact size and light weight design. The heavy duty chassis occupies only 3Uof rack space while accommodating up to four full height, shock mounted, mass storage bayseach powered by redundant 65 watt power supplies. Each bay can have mounted either onefull height or two half height or three slim height devices. The front panels provideaccess to either two full height or four half height devices with removable media (i.e.floppy disks, tape cartridges, CD-ROMs, or optional drive shuttles). The rounded metalcorners and rugged handles, aid in safe handling. The chassis has threaded inserts forfour of the more commonly used rack slides. The optional mounting kit includes flanges andlegs for horizontal or vertical mounting other than rack. Internally, all major componentsare well secured and electrically insulated to prevent damage due to shock and vibration.Additionally each drive bay is shock mounted within the chassis. The universal inputselects from either domestic or international voltages automatically. The LED arrays keepthe operator informed as to the power and activity status of each device. Controls andprotective devices are brought to the front control panel which is recessed to preventdamage or accidental operation. The input switch, fuses and wiring provide double poleisolation for shipboard systems. A bi-directional single-ended to differential SCSIconverter option allows the mixing of both single-ended and differential SCSI devices onone SCSI bus. This option is available for either Fast SCSI-2 or Fast-Wide SCSI-2 andSCSI-3.

The rear panel provides four interface panel positions. Interface panel options areavailable for all standard SCSI connectors. These can be mixed and matched to suit aparticular configuration. An optional SCSI ID selector switch panel allows externalsetting of device IDs. Dual washable intake air filters and high capacity ball bearingfans provide added protection in both controlled and hostile environments. The cooling airis diverted out the front vents after passing by both top and bottom of each device.

Overall, the MissionCritical™ line is uniquely qualified for criticalshipboard, vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.

Technical Specifications
P/N: ETI0014-D4
NSN: 7025-01-430-3634
Drive bays type: (4) full height bays, any bay can hold up to
(2) half height or (3) slim height devices
Drive bay mounting: Each full bay shock mounted to chassis
Removable media: Front bays can have fixed or removable media
Drive bay power: Both +5 and +12 VDC to each half height bay
Drive power connector: Both standard and mini power connectors
Drive power control: Recessed, ON/OFF rocker switches, 1 per bay
Drive status indicators: (1) Power, (1) Activity LED per half height bay
I/O Ports: Four chassis input/output (I/O) panels standard
I/O Connectors: Selection of 50 and 68 terminal connectors for
SCSI-2 and SCSI-3, both Fast and Fast/Wide
Other I/O interfaces available upon request
SCSI address selection: Fixed at device by jumper setting standard,
Optional external SCSI ID selector switches (8)
Single-ended/Differential: Can be mixed w/ optional bi-directional converter
Input voltage selection: 100-240 VAC, 46-70 Hz autoranging, DC optional
Input transient suppression: Complies with IEEE 587 and UL 1449
Input control/protection: Recessed, double pole, front mounted switch
Recessed, front mounted fuses, 1 per line
Internal AC input fuse on each supply x 4
Input status indicator: AC Power On indicator, green neon
Input power connection: IEC320-15P with cable restraint, others optional
Output rating: each Redundant 65 watts for each full bay x 4
Output voltage:+5 VDC +5 VDC, ± 5% tolerance, 50 mV ripple
Output current:+5 VDC 3.5 A max., 0.5 A min., 8 A peak, each supply
Output voltage regulation:+5 VDC ± 1.0% static, ± 5.0% dynamic of nominal
Output voltage:+12 VDC +12 VDC, ± 10%, 100 mV ripple
Output current:+12 VDC 4.0 A max., 0.5 A min., 8 A peak, each supply
Output voltage regulation:+12 VDC ± 2.0% static, ± 10% dynamic of nominal
Overall Dimensions ( H x D x W ): 5.25 (3U) x 23.5 x 19.0 in (133x597x483mm)
Rack Slide Mount Patterns: Jonathan, General Devices or EMCOR patterns
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Shipping weight: 35 lb. (16 kg) with lift handles front and rear
Audible noise: Less than 45 dB @ 5.0 ft., ANSI "A" scale
Cooling type: Dual, high capacity, positive pressure, forced air
Cooling air direction: Rear intake, exhaust to front and sides std
Air intake filter: Washable filter media, various porosities
Storage temperature: -4° to 122° F ambient (-20° to 50° C )
Operating temperature: 32° to 122° F ambient (0° to 50° C )
Operating humidity: 0 to 95% relative humidity (non-condensing)
Operating elevation: Up to 15,000 ft (4,572 m), higher optionally
United States: Meets to UL standard 1950,
MIL STDs 810, 454 & 1399 For Shipboard Use
Canada: CSA requirements 1402C safety requirements
EMI Protection: EMI/RFI FCC, Class A, optional MIL STD 461
  Alternate mounting kit, Custom configurations

For information on ETI's rugged removable disk drive carriers, check out ETI0014-DE200that are hot swappable, RAID compatible and withstand shock and vibration.
